Monitored Ball Valves

Residential Booster Pump Sets

Due to our ever-increasing Residential and Domestic flow of enquiries, and the recent demands of BS 9251:2021, SEP is pleased to present our monitored ball valve in sizes from 1”/25mm up to 2”/50mm.

BS 9251:2021, section 5.15 states that “except for category 1 systems, all valves which control the flow of water to the system should be electrically monitored for the open position” – SEP can help ensure that all R&D (Residential and Domestic) fire sprinkler system installers meet this requirement, along with many others.

The valve and monitor switch can be purchased stand-alone, or as part of our resi-riser assembly, and the small assembly is simple and lightweight.

As required, the spring switch ensures that the valve is monitored to be ‘in the fully open position’ – even if slightly closed, a signal will be transmitted to the monitoring panel.

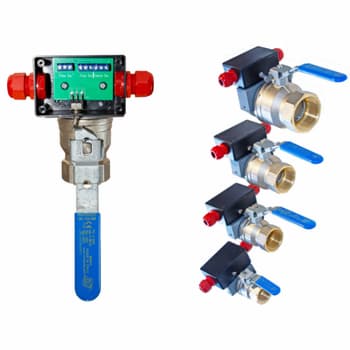

Monitored Ball Valves Comprising the Following:

  • PN40 brass ball valve with BSP female threads
  • WRAS-approved
  • Fully lockable handle (keyed-alike padlocks also available)
  • Micro-switch monitoring that the valve is fully open and not tampered with or damaged
  • Flexible NC and NO connection options
  • Flow switch connections also provided
  • ABS enclosure with low flammability rating (UL94-HB)
  • IP54-rated enclosure with min IP54-rated cable glands.

If you are installing R&D fire sprinkler systems, did you know we also supply:

  • Booster Pump sets – we are a nominated distributor for Grundfos FireSAFE, and the only stockist (even Grundfos themselves do not stock complete units).
  • Priority Demand Valves, designed to isolate the domestic water supply in the event of fire sprinkler system operation, fail-safe design in accordance with BS 9251:2021.
  • Resi risers (valve sets complete with LPCB-approved flow switch, pressure gauge, lockable test valve), allowing you to meet further BS 9251:2021 requirements.
  • Zone Guardian, zone water flow alarm switch test devices for larger zoned systems.
  • Wet riser pump initiation and test panels, where wet risers are installed as part of a larger system.
  • Pressure gauges, switches, flow switches and various other ancillaries.
Monitored Ball Valves

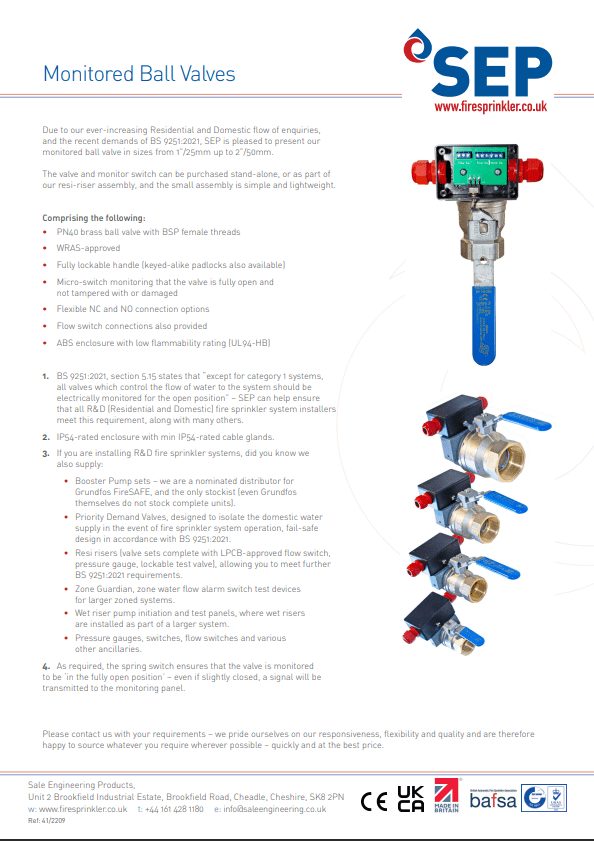

Download data sheet
