Residential Booster Pump Sets

Residential Booster Pump Sets

The residential/domestic fire sprinkler market is growing in importance and size, therefore we offer a choice of two ranges of booster pump sets for this application to suit different applications – the highly cost-competitive ranges from Grundfos covers both domestic (CM range) and residential (CRi range). In fact we are delighted to announce that, due to our own growth and market position, Grundfos have agreed that all new UK enquiries will be placed through SEP with immediate effect!

Models and prices depend on the flow rates and pressures required (please have this information ready when enquiring), depending on the sprinkler system and local water pressure or whether the system is to be fed from a header tank.

Residential Booster Pump Sets

The range outlined covers selected models, all of which are BS9251:2014 compliant; please contact us with your requirements – we pride ourselves on our responsiveness, flexibility and quality and are therefore happy to recommend and source to suit your specific requirements.

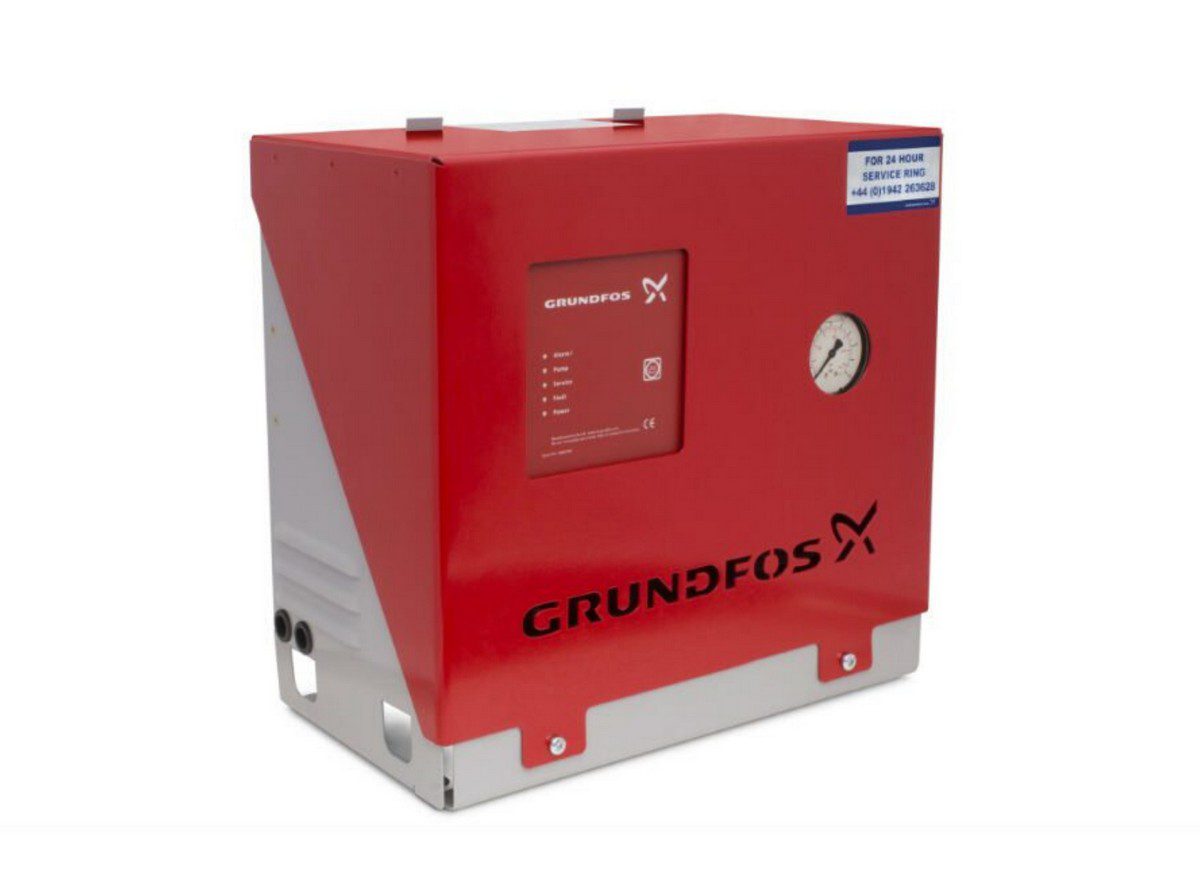

Grundfos FireSAFE Key Features

  • Specially programmed control panel with anti-tamper protection.
  • Automatic top-up via continuous pressure monitoring, and weekly self-test.
  • Dual discharge pressure switches, ensuring redundancy.
  • Volt-free contacts for remote monitoring of status.
  • Test line connection and system drain point.

Grundfos FireSAFE Domestic Range Features

  • Very compact – footprint as small as 421x413mm, height as low as 233mm.
  • Flow range up to 235lpm, pressure range 1.2-4.7 bar.

Grundfos FireSAFE Residential Range Features

  • Also incorporates a water flow alarm switch.
  • Footprint from 810x370mm, height from 575mm.
  • Flow range up to 400lpm, pressure range up to 14 bar.

Lowara Advanced Features

  • Automatic self-test cycle (frequency set 4-28 days), and manual test.
  • Volt-free contacts for unit status and operational alarm.
  • Vessel to accommodate expansion and maintain pressure against small leaks.
  • Footprint from 700x340mm, height from 640mm.
  • Flow range up to 400lpm, pressure range up to 6 bar.

Please state your voltage, flow rate and pressure requirements when enquiring.
